Feature:
-It is ideal for a variety of machining applications including boring milling,reaming,tapping and grinding.
-Material:SUJ2
-HRC46 degree

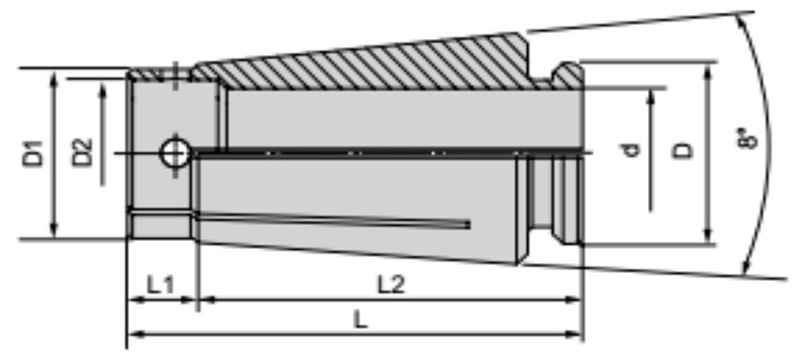

-SK Collet designed with 8 degree cone angle which shortens the suspended length of a collet,-therefore,the clamping power is huge.
-The nut is completely balanced,it can improve the performance of dynamic balancing.
-the tolerance of the clamping tool is limited during H7
-the hollow diameter is smaller than 3mm,its elastic contract is 0.25mm
-the hollow diameter is larger than 3mm,its elastic contract is 0.5mm
-Accuracy:T.I.R.＜0.01mm A Grade.
| Code No. | D | Clamping Range |
| A-SK10-2 | 15.6 | 1.75-2.0 |
| A-SK10-2.25 | 2.0-2.25 | |
| A-SK10-2.75 | 2.5-2.75 | |
| A-SK10-3 | 2.75-3.0 | |
| A-SK10-3.5 | 3.0-3.5 | |
| A-SK10-4 | 3.5-4.0 | |
| A-SK10-4.5 | 4.0-4.5 | |
| A-SK10-5 | 4.5-5.0 | |
| A-SK10-5.5 | 5.0-5.5 | |
| A-SK10-6 | 5.5-6.0 | |
| A-SK10-6.5 | 6.0-6.5 | |
| A-SK10-7 | 6.5-7.0 | |
| A-SK10-7.5 | 7.0-7.5 | |
| A-SK10-8 | 7.5-8.0 | |
| A-SK10-8.5 | 8.0-8.5 | |
| A-SK10-9 | 8.5-9.0 | |
| A-SK10-9.5 | 9.0-9.5 | |
| A-SK10-10 | 9.5-10.0 |
| Code No. | D | Clamping Range |
| A-SK25-16.5 | 35.7 | 16.0-16.5 |
| A-SK25-17 | 16.5-17.0 | |
| A-SK25-17.5 | 17.0-17.5 | |
| A-SK25-18 | 17.5-18.0 | |
| A-SK25-18.5 | 18.0-18.5 | |
| A-SK25-19 | 18.5-19.0 | |
| A-SK25-19.5 | 19.0-19.5 | |
| A-SK25-20 | 19.5-20.0 | |
| A-SK25-20.5 | 20.0-20.5 | |
| A-SK25-21 | 20.5-21.0 | |
| A-SK25-21.5 | 21.0-21.5 | |
| A-SK25-22 | 21.5-22.0 | |
| A-SK25-22.5 | 22.0-22.5 | |
| A-SK25-23 | 22.5-23.0 | |
| A-SK25-23.5 | 23.0-23.5 | |
| A-SK25-24 | 23.5-24.0 | |
| A-SK25-24.5 | 24.0-24.5 | |
| A-SK25-25 | 24.5-25.0 | |
| A-SK25-25.5 | 25.0-25.4 |
